From Astro-Physics:

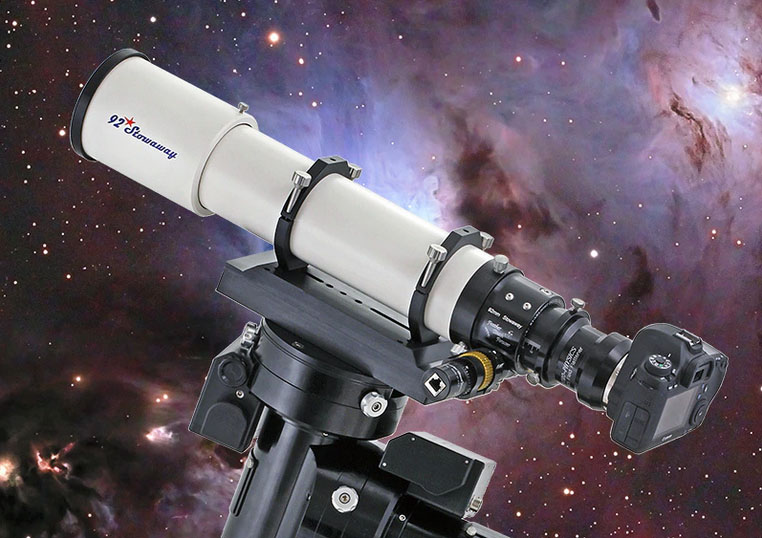

Astro-Physics introduced the redesigned Stowaway at the Northeast Astro-Imaging Conference on April 18, 2018. Long-time astronomers will recall that we offered f5 and f7 Stowaway refractors from 1999-2002 that are cherished today for their portability and performance. Indeed, our own Stowaway has traveled with us to star-gaze in far off places as well as to watch whales, boats, birds and other wildlife. While observing the solar eclipse in August 2017 from Wyoming, we had so much fun with our original 92 mm Stowaways that we decided to make two additional production runs, which were shipped in 2018-2019. The response and feedback has been so positive that that we are in production with a third run run of this scope for 2020 delivery.
This triplet lens scope has the same extraordinary quality that you have come to expect from Astro-Physics with a few new exciting features:
- Grab ‘n go visual travel companion. Follow eclipses around the globe or observe wildlife from afar!
- Dramatic deep-sky imaging with its optional Field Flattener (92FF) and Telecompressor Corrector (92TCC).
- Silky, smooth 2.5” Starlight Instruments Feather Touch focuser with dual-speed mechanism. The dual-speed feature is particularly advantageous for critically focusing this fast focal ratio. A digital focusing system is available for imaging.
- Rotating focuser enables you to frame your photos for optimal, artistic composition.
- Compact, lightweight tube assembly travels easily in its Pelican Air case.
- Fully retractable, felt-lined dew shield slides to its fully-extended position and then secures in place.
- Latest multi-coating technology will provide optimum light transmission.
The tables below gives the technical specifications and eyepiece data for the 92mm Stowaway.
| Astro-Physics 92mm F6.65 Stowaway Specifications | |
|---|---|
| Color correction | Less than +/- 0.003% focus variation from 656 nm to 436 nm (c to g wavelengths). |
| Clear aperture | 92 mm (3.62”) |
| Focal length | 612 mm (24.1”); Backfocus of 160 mm (6.3”) |
| Focal ratio | f/6.65 |
| Theoretical Resolution | 1.1 arc seconds |
| Coatings | Multi-layer, broadband, overall transmission greater than 97% in peak visual wavelengths |
| Magnification range | 18x to 360x |
| Tube assembly | Cream white, 3.62” diameter, machined aluminum tube, fully baffled, flat black interior, engraved retaining ring. |
| Focuser type | 2.5” I.D. Starlight Instruments FeatherTouch Focuser with rotating collar, rack and pinion, Feather Touch Micro 9:1 dual-speed reduction, 3.5” travel. Focuser drawtube features millimeter focusing scale. 2” and 1.25” adapters included. |
| Telescope length | 19.5” (495 mm) with dew shield fully retracted; 21.75” (553 mm) with dew shield fully extended. |
| Diameter of dew shield | 4.4” (112 mm) OD, retractable |
| Weight with dust cap | 7.1 lb. (3.2 kg) |
| Carrying case | Pelican Air 1525 with TrekPak Dividers |
Specifications subject to change without notice.
Photographic Field
| Photographic field with dedicated Field Flattener |
Unvignetted image circle: 50 mm diameter |
| Photographic field with 0.8x Telecompressor Corrector | Unvignetted image circle: 40 mm diameter 35 mm format: 4.2 x 2.9 degrees Focal ratio: f/5.3 Focal length: 488 mm Backfocus Spacing: 2.52" (64.1 mm) |
| Photographic field with 2x Barlow |
Image circle: 32 mm diameter, 1.2 degrees |
