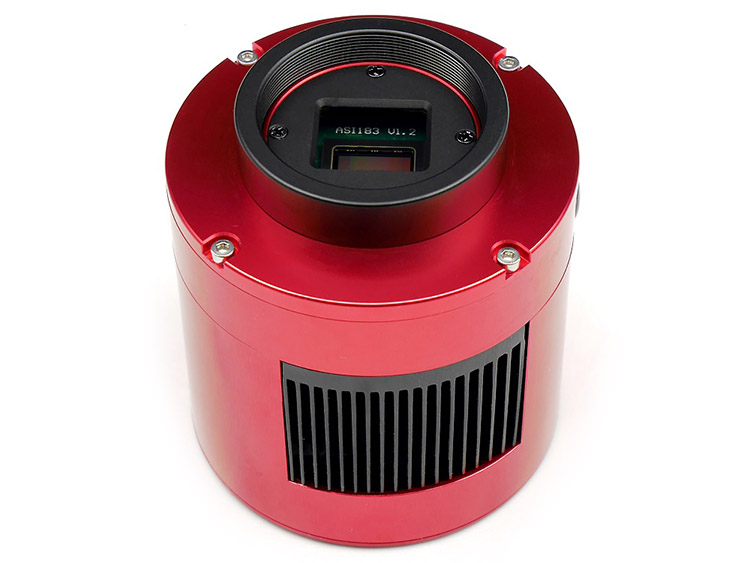

The ZWO ASI183MC Pro is a thermoelectrically cooled one-shot color astronomical camera. It belongs to a group of the most sensitive cameras ZWO has ever offered. They incorporate a back-illuminated Sony IMX183 CMOS sensor with 20.18 MP resolution and a 5496 x 3672 pixel array. These cameras have an exceptionally large full well capacity (15000e) despite a tiny 2.4 µm pixel size, as well as 1.6e read noise @ 30db, and 12 stops dynamic range @ gain=0. They also make use of firmware components to reduce amplifier glow for peak astrophotography performance.
ZWO ASI183MC Pro - Specifications
- Sensor: 1″ CMOS IMX183CLK-J/CQJ-J (Color)
- Pixel Size: 2.4μm
- Resolution: 20.18 Mega Pixels (5496*3672 pixels)
- Diagonal: 15.9mm
- Area: 13.2 x 8.8 mm = 116 mm**2 (13.4% of 35mm Full Frame)
- Bayer Pattern: RGGB
- Shutter: Rolling shutter
- Exposure Range: 32µs-2000s
- ROI: Supported
- Read Noise: 1.6e @30db gain
- QE peak: 84%
- Full well: 15ke
- ADC:12bit
- DDRIII Buffer: 256MB
- Interface: USB3.0/USB2.0
- Adaptor: M42X0.75
- Protect window: AR window
- Dimensions: 78mm Diameter
- Weight: 410g
- Back Focus Distance: 6.5mm
- Cooling: Regulated Two Stage TEC
- Delta T: 40°C / 45°C below ambient
- Camera Power consumption: 650mA at 5V
- Cooler Power consumption: 12V at 3A Max
- Working Temperature: -5°C — 45°C
- Storage Temperature: -20°C — 60°C
- Working Relative Humidity: 20% — 80%
- Storage Relative Humidity: 20% — 95%
